Scroll down to see all installation instructions.
Grey water pump mount instructions.
Step #1 Remove the two handle screws on the right side of the tank using a 3/16 hex wrench.
Step #2 Install the pump and mount using the longer bolts supplied with your kit.

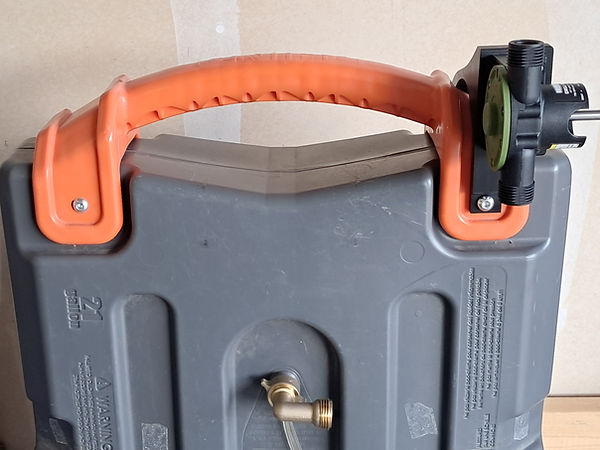

After installation the pump should look like this image.
Step #3 Install brass 90 degree elbow as shown.
Step #4 Install clear hose to pump and brass elbow as shown in image.
Step #5 Install drain cap on sewer outlet pipe.
Installation is complete and your grey water pump is ready to use.
Please remember to open the large cap on the tank while filling to release the air pressure.
